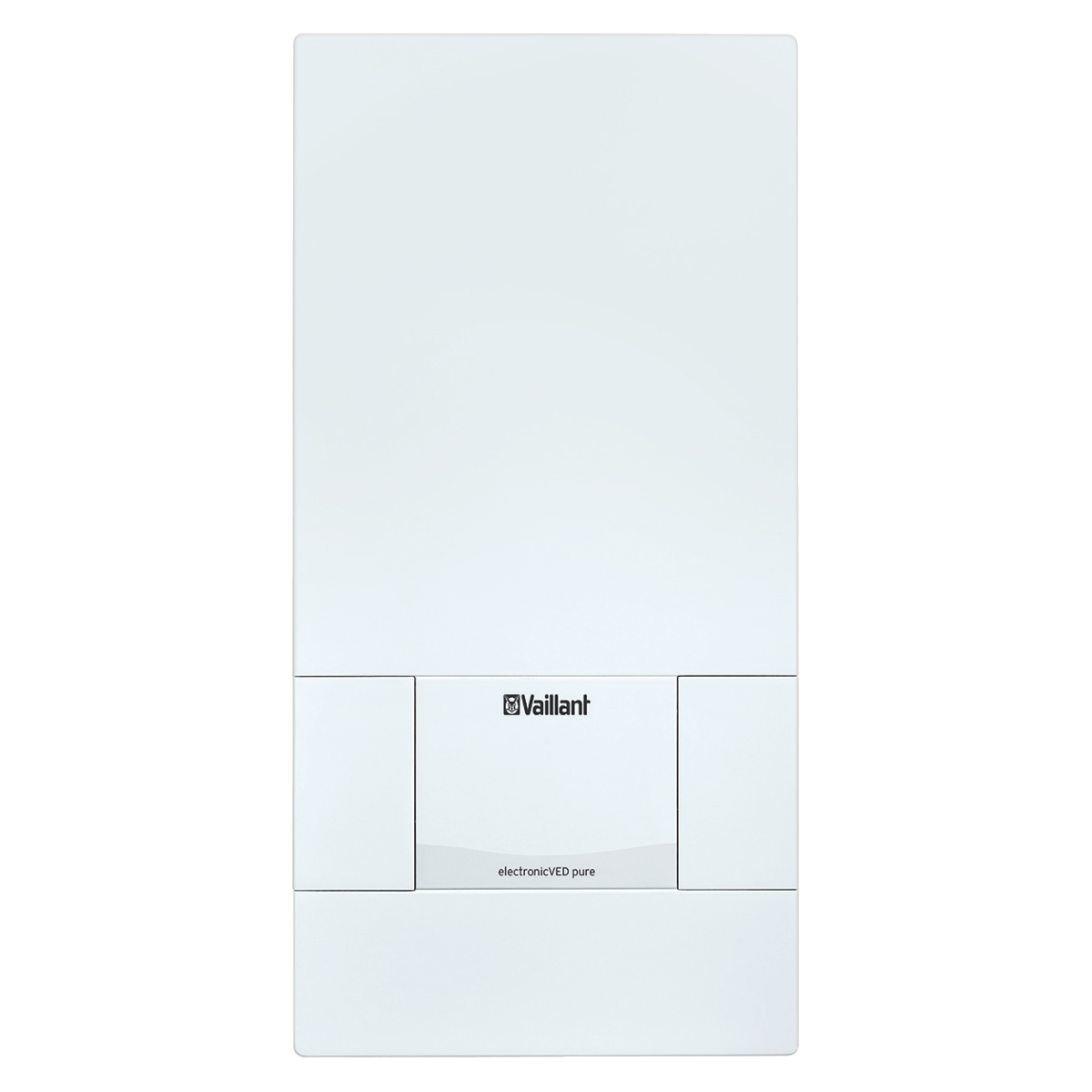

Vaillant electronic VED instantaneous water heater
Our Vaillant electronic VED instantaneous water heaters are suitable for almost any application and can supply one or more draw-off points with hot water simultaneously.
Because hot water is generated directly at the draw-off point, there are no storage or circulation line losses – and the short pipe runs also reduce heat losses to a minimum. At the same time, this improves drinking water hygiene. In addition, with a depth of only 99 mm, they are particularly space-saving and fit even in the smallest niche.
Whether in the bathroom or kitchen, in a single-family home or in an apartment.
Easiest operation
Temperature setting on the electronicVED and electronicVED pro devices could not be easier: on both product lines, it is done via a practical rotary knob. On the electronicVED, the desired temperature can be set continuously and precisely to the degree – and thanks to the new digital temperature display, it can also be read directly. On the electronicVED pro, you can choose between three preset temperature levels: 35°C, 45°C or 55°C – which can be varied by mixing in cold water.
Installation made easy

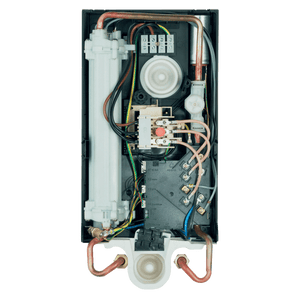

Thanks to our Pro-I installation system, all Vaillant electronic VED pure instantaneous water heaters are installed in no time. The integrated folding frame ensures easy access to the connection fitting, the included inlet shut-off valve ensures easy appliance maintenance, and the rotatable appliance cover ensures easy operation when installed under the sink. In addition, all electronicVED devices are compatible with all third-party devices: thanks to the universal mounting plate, old appliances can be easily replaced. The appliance construction with plug-in components – all of which are of course made from recyclable materials – enables easy disassembly.
Ideal for replacement business
Thanks to their high cost-effectiveness, our electronic instantaneous water heaters are ideal for modernization: after all, when replacing hydraulically controlled devices, they save up to 30% in energy and water costs. This is because with our electronicVED devices, the outlet temperature can be preset precisely to the degree.
- Infinitely adjustable temperature controller
- 7-segment temperature display
- Electronic power control
- PRO I installation system for maximum installation convenience: variable electrical connection, folding frame at the bottom
- Suitable for plastic pipe systems according to DIN 1988 and DIN 16892/16893
- Splash water protection IP 25 D enables unrestricted installation in protection zone 1
- UV-resistant appliance cover (no yellowing due to UV radiation)
- Hot water comfort: constant, infinitely adjustable outlet temperature from 30 °C to 55 °C up to the performance limit
- 7-segment temperature display for precise temperature preselection
- Energy and water savings of up to 30% compared to hydraulic instantaneous water heaters
- Easy and fast maintenance thanks to good accessibility of easily replaceable components
- Automatic air bubble detection on all electronic devices
- Adjustable scald protection
Technical data: Vaillant electronic instantaneous water heater VED pure
| Technical data |
Unit |
VED E 18/8 |
VED E 21/8 |
VED E 24/8 |
| Heating output |
kW |
18 |
21 |
24 |
| Output control |
|
Electronically controlled |
Electronically controlled |
Electronically controlled |
| Continuous hot water output Δt 30K |
l/min |
8 |
8 |
8 |
| Voltage |
|
400V/50Hz |
400V/50Hz |
400V/50Hz |
| Electrical connection |
|
Cable |
Cable |
Cable |
| Protection class |
|
IP25 |
IP25 |
IP25 |
| Hot water temperature (min - max) |
°C |
30 - 55 |
30 - 55 |
30 - 55 |
| Max. inlet temperature |
°C |
55 |
55 |
55 |
| Product dimensions (height / width / depth) |
mm |
481 / 240 / 99 |
481 / 240 / 99 |
481 / 240 / 99 |
| Product weight |
kg |
4.4 |
4.4 |
4.4 |
- 1 electric instantaneous water heater electronicVED
- 1 cold water connection piece R 1/2 with cold water shut-off valve
- 1 hot water connection piece R 1/2
- 1 mounting plate
- 1 mounting template
- 1 set of mounting materials
- 1 operating and installation manual
- 1 product data sheet, energy efficiency label
