Heating rod heating cartridge 4.5 kW for boilers and buffer memory

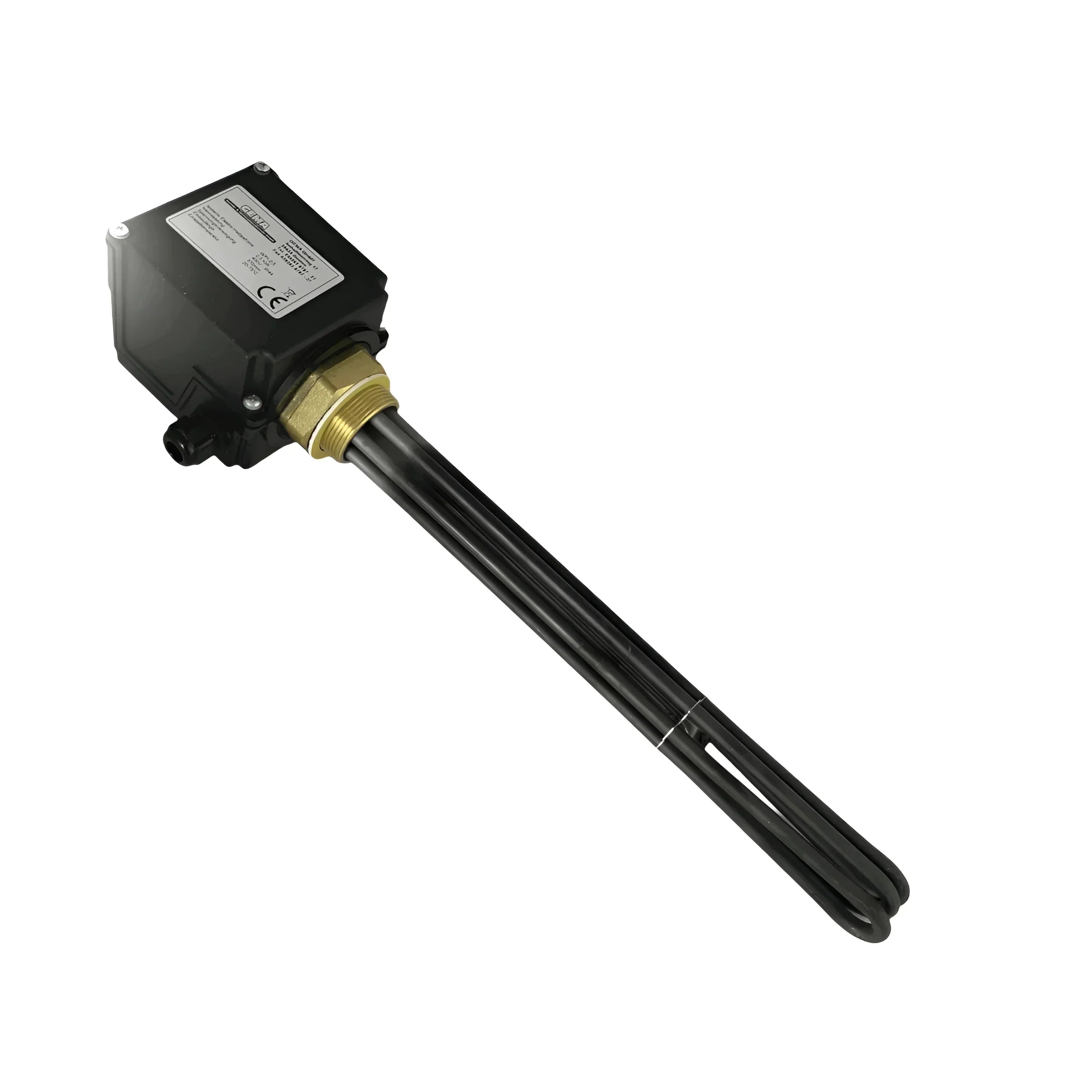

Heating element heating cartridge 4.5 kW AG 1½“ – Powerful emergency heating
Product description
The 4.5 kW 1.5" external thread cartridge heater is an efficient emergency heater for buffer tanks, drinking water storage tanks, and solar storage tanks. Thanks to its robust construction, it is suitable for continuous operation and ensures consistent heat distribution.
Powerful heating technology
With a power output of 4,500 W and an operating voltage of 3~400 V, this heating cartridge heats your storage tanks quickly and reliably. The installation length of 450 mm and the unheated zone of approximately 120 mm allow for use in enameled tanks and steel-walled storage tanks.
Regulation and safety

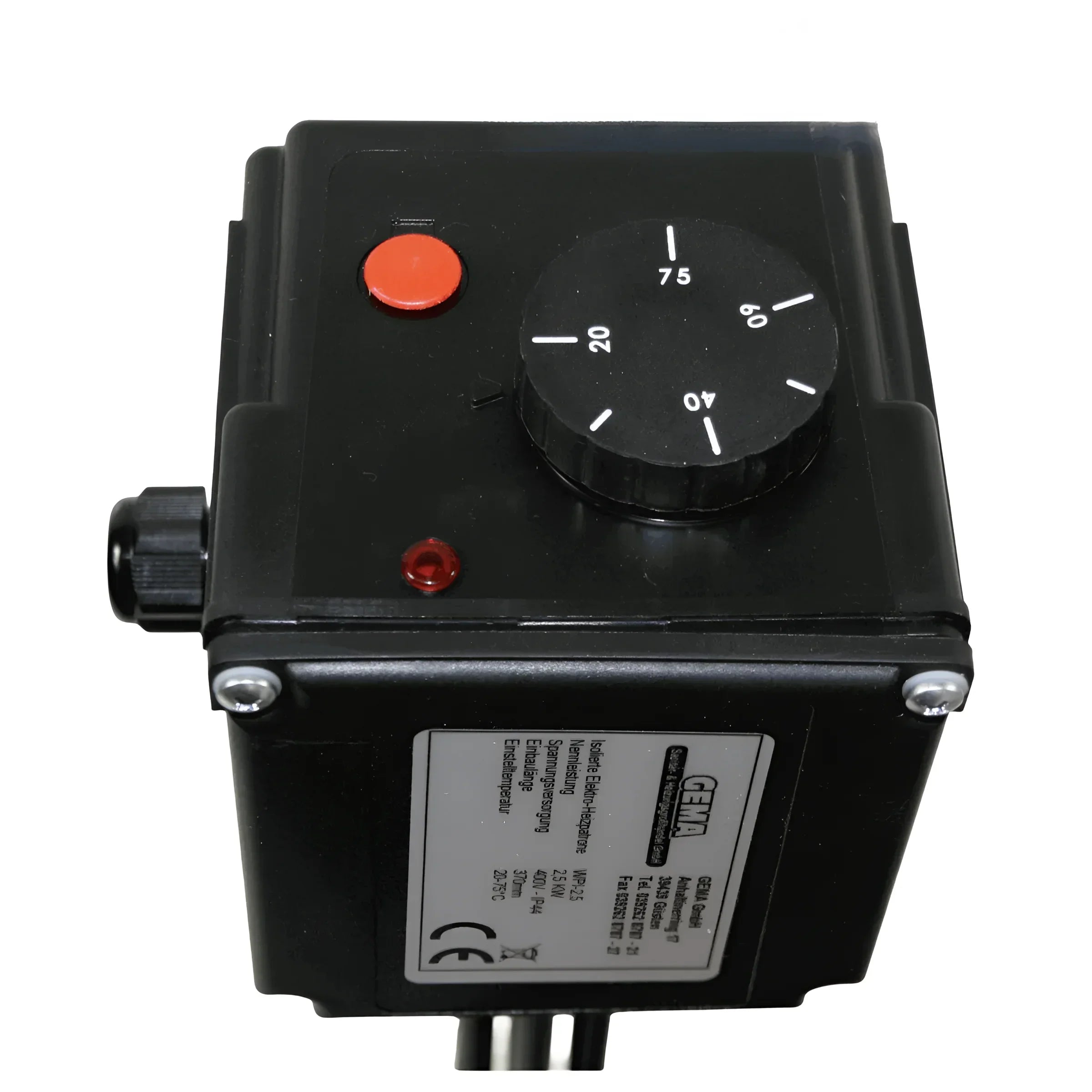

The continuously adjustable thermostat (30–75 °C) provides precise temperature adjustment for various applications. An integrated safety thermostat (STL) reliably shuts off at 98 °C, protecting your system from overheating.
Material and protection
The Incoloy 825 (material 2.4858) tube jacket ensures first-class corrosion resistance. The insulating separation prevents galvanic reactions, while the ABS plastic housing and brass screw head provide additional protection. IP54 protection ensures safety in humid environments.
Areas of application
Ideal for use in PV batteries, solar storage tanks, buffer tanks, and drinking water storage tanks. Thanks to the high-quality materials, the heating element can also be used in enameled and steel-walled storage tanks without risk of corrosion damage.
Technical data
- Power: 4,500 watts
- Voltage: 400V
- Application: enamelled containers
- unheated length: 120 mm
- Installation length: 470 mm
- Protection class: IP54
- max. operating pressure: 10 bar
- Temperature control: 30 - 75 °C
- Safety temperature limiter: 98 °C
- Connection: 1 1/2" AG
Scope of delivery
- 1 x heating element 4.5 kW
- 1 x flat gasket
- Assembly and operating instructions
