ESBE CTF151 Flue Gas Thermostat – Precise Control for Circulation Pumps
The ESBE CTF151 flue gas thermostat is a reliable solution for the automatic control of circulation pumps and loading groups. With its advanced technology, it ensures precise temperature control and adapts its functionality to the conditions of the flue gas. Thanks to its versatile applications, this thermostat is an indispensable accessory in heating systems.
Function and Areas of Application
The CTF151 model series was specifically developed for switching circulation pumps or loading groups on and off. Control is achieved by detecting the flue gas temperature. With a wide temperature range from 20°C to 240°C, the desired switch-on and switch-off temperature can be individually set. This not only increases the efficiency of the heating system but also saves energy.
The ESBE CTF151 is used in heating systems where it optimally regulates heat circulation. Whether in private households or commercial installations – this flue gas thermostat ensures reliable and energy-efficient control.
Simple Design and Installation

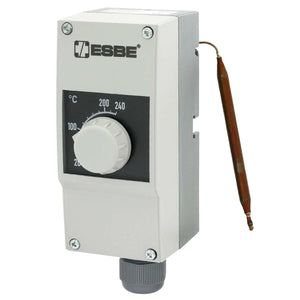

The ESBE CTF151 consists of two main components: a robust temperature sensor and a reliable switching unit. The temperature sensor can be flexibly mounted on the outside of the flue gas pipe or, with the help of a compatible immersion sleeve (e.g., the model series CTF851) directly in the flue gas pipe. The switching unit can be easily fixed to the wall, allowing simple integration into existing systems.
The simple installation and clearly structured operation make the CTF151 thermostat a user-friendly and effective control option. With the practical rotary switch, the user can effortlessly set the desired flue gas temperature.
High-quality materials for a long service life
The ESBE CTF151 flue gas thermostat is made of durable materials that ensure a long service life even under intensive use. The temperature sensor is made of high-quality stainless steel (CrNi, 1.4301), which makes it particularly corrosion-resistant. The thermostat housing is made of robust plastic (reinforced PA), while the housing cover is made of sturdy ABS plastic.
Thanks to this choice of materials, the device is well protected against external influences such as moisture or temperature fluctuations. It meets protection class IP54 and can therefore be used even in demanding environments.
Technical details at a glance
The ESBE CTF151 impresses with its well-thought-out technical specifications. The hysteresis of 7% of the scale range ensures precise temperature control, and the contact rating offers high flexibility when controlling various devices. The key technical features include:
- Protection class: IP54 according to EN 60529
- Temperature range: 20°C to 240°C
- Temperature sensor dimensions: Ø6 mm x 96 mm
- Cable length: 1.5 m (Ø1.5 mm)
- Material components: plastic (ABS, PA), stainless steel (CrNi, 1.4301)
Weighing only 0.2 kg, the thermostat is easy to handle and install. It is also suitable for operating environments with temperatures from 0°C to +50°C and can be stored in a temperature range of -30°C to +50°C when not in use, which further increases flexibility in use.
Why the ESBE CTF151 is an excellent choice
The ESBE CTF151 flue gas thermostat combines top-quality materials, a well-thought-out design, and straightforward handling with high functionality. It enables precise and reliable control of circulation pumps and loading groups, contributing to sustainable energy efficiency. The flexible mounting option and adjustable temperature range make it a versatile tool for heating systems.
With the ESBE CTF151, you optimize your heating systems, reduce energy losses, and benefit from a durable and user-friendly product.
