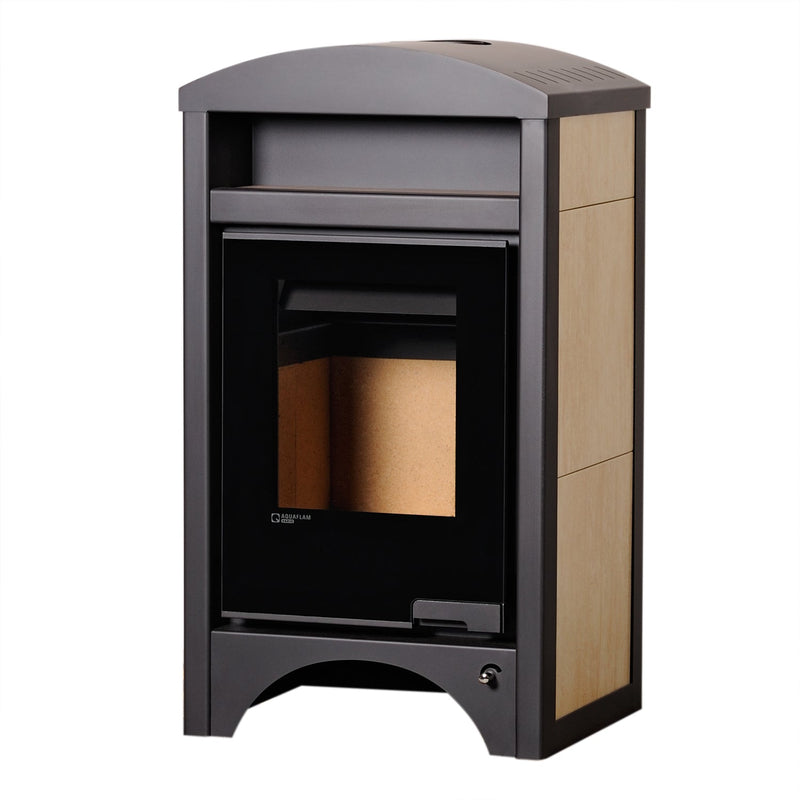

Aquaflam Vario Barma wood-burning stove – 11.1 kW wood stove with ceramic cladding
Brief description
The Aquaflam Vario Barma is a high-performance wood-burning stove with a nominal output of 11.1 kW and a heating capacity for rooms up to 300 m³. The side panels made of interchangeable ceramic tiles give the stove an attractive appearance and allow for individual customization to suit the living space.
Performance and efficiency
The stove operates with primary, secondary, and tertiary air, resulting in particularly clean and efficient combustion with low fuel consumption. The combination of convection heat and sophisticated airflow ensures rapid heating of the room.
With a combustion chamber capacity for logs up to 45 cm in length and a robust construction, the Vario Barma offers long-lasting operational reliability and economical operation.
Design and variations

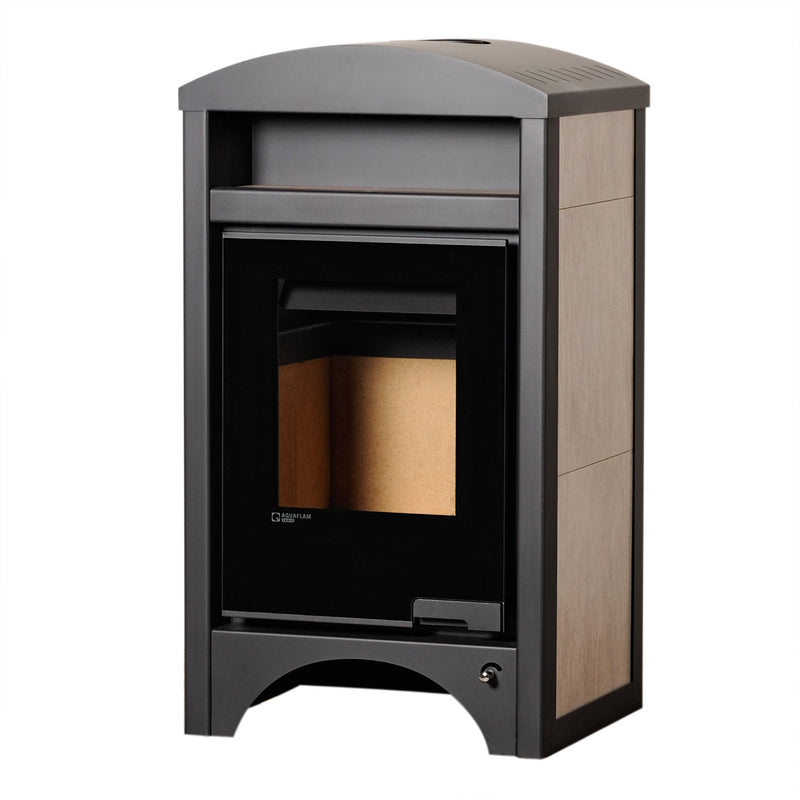

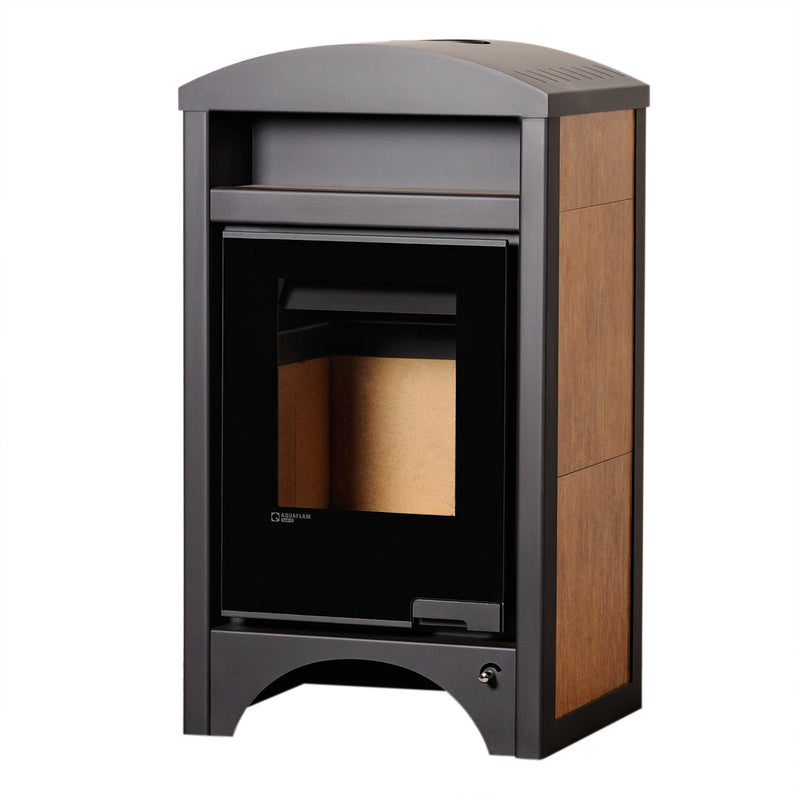

The ceramic tiles on the sides are available in different colors and can be easily removed or replaced, allowing the design to be adapted to changing interior design ideas. The blackened edges of the viewing window give the stove an elegant look and accentuate the dancing flames.
Construction and materials
The combustion chamber is made of 5 mm boiler steel and lined with fireproof chamotte bricks, which increases radiant heat and durability. A cast iron grate ensures stable storage of the logs, while a removable ash pan below collects the residue for easy disposal.
Operation and safety
The air supply is manually controlled via a regulator located beneath the combustion chamber, allowing for individual adjustment of the combustion process. The combustion chamber door features a three-point locking system that ensures a secure and permanently airtight seal.
An integrated glass cleaning system keeps the view of the flames clear for longer and reduces cleaning effort, while dimensionally stable seals ensure a long service life without frequent replacement.
Connections and options
The Vario Barma comes standard with a connection for external air supply; the pre-installed Eko-Air-In system can be used optionally to draw combustion air directly from outside, thus avoiding any impact on the room air. This also reduces the risk of deflagration of gaseous components and increases efficiency.
If you prefer a water-bearing stove, the Vario Barma Manual model with pre-assembled water tank is offered as an alternative in the product range.
Installation and area of application
This stove is suitable for living spaces where a powerful, convection-based heating element is desired and can reliably heat rooms up to approximately 300 m³. During installation, attention must be paid to adequate air supply, connection to the chimney, and compliance with local regulations; professional installation by a certified stove fitter is recommended.
Care and maintenance
Regular removal of the ash from the removable container, occasional cleaning of the viewing window, and checking the seals will maintain the functionality and appearance of the stove. The robust materials reduce maintenance requirements and extend its lifespan.
Approvals and standards
The Vario Barma meets numerous requirements and approvals, including DIN EN 13240, DINplus, BImSchV stage 2, 15a B-VG and the Flamme Verte certificate.
Technical data
- Nominal heat output: 11 kW
- Efficiency: 80.88%
- Max.Heating capacity: 300 m³
- CO emission: 1177 mg/cm³
- Fine dust emission: 26 mg/m³
- Exhaust gas mass flow: 8 g/s
- Exhaust gas temperature at the nozzle: 296 °C
- Dimensions (H x W x D): 1070 x 598 x 493 mm
- Weight: 142.5 kg
- Ø Flue pipe connection: 150 mm
- Towards flue pipe connection: top
- Body color: Brown
- Approved fuels: briquettes, wood
- Maximum length of fuel: 45 cm
- Fuel consumption: 3.19 kg/h
- Required delivery pressure at nominal heat output: 12 Pa
- Multiple occupancy/Construction type: Yes/Construction type 1
- Standards, approvals and guidelines met: BImSchV Stage 2, DIN EN 13240, DINplus, Flamme Verte, approval for Austria according to 15a B-VG
- Standards: BImSchV Stage 2, DIN EN 13240, DINplus, Flamme Verte, Approval for Austria according to 15a B-VG
